Picture Windows from Beverley Hills

Expand your design flexibility with Fixed windows.

These windows do not open, so they are best for hard-to-reach spots and wherever ventilation is not needed. That’s why they are also called architectural or picture windows. They can be custom-shaped in virtually any form, from arches to sharp corners; if it can be designed, we’ll build it! Architectural windows are great for transoms, sidelites, or together with venting units in bay, bow, or other configurations. With our microcellular PVC frame, they offer a coordinated sightline with our casement and awning windows. With a weather-tight but bright construction and great insulation, our fixed windows are rated Energy Star Most Efficient.

RevoCell® Fixed, Picture & Shaped Window Features

Beverley Hills fixed windows feature Microcellular PVC construction.

Microcellular PVC construction

Our RevoCell® fixed window frames, brickmoulds, and sashes are insulated with billions of closed microscopic cells for superior energy efficiency. They are fusion-welded as a single unit, preventing the air from moving between the window parts.

Beverley Hills fixed windows feature a Contemporary design.

Contemporary design

Our RevoCell® fixed windows feature a minimalist, slim profile that goes equally well with traditional and contemporary home designs.

Beverley Hills fixed windows feature a 4-1/2” fusion-welded frame.

4-1/2” fusion-welded frame

Our windows come standard on a 4-1/2” deep frame, which is stronger and more durable than the standard 3-1/4” sold elsewhere. The deeper frames give extra dimensional stability and strength. It also allows for a lower sash profiles to maximize the glass surface.

Beverley Hills fixed windows feature superior structural construction.

Structural construction

Our RevoCell® multi-lite fixed windows feature structurally strong, seamless one-piece frames with integrated cross-mullions. It allows for more natural light to enter the interior, and offers better protection against drafts and water infiltration.

Beverley Hills fixed windows have Dual and triple-pane options.

Dual and triple-pane insulated glass units

Two or more layers of glass are joined to create a sealed hollow chamber that acts as a thermal buffer. This minimizes direct heat transfer through glass, and helps prevent condensation and ice build-up. It also helps soundproof the interior, in conjunction with a high-quality cellular spacer.

Beverley Hills fixed windows feature Low-emissivity coated glass.

Low-emissivity coated glass

An invisibly thin metallic coating is baked onto one or more of the glass pane surfaces, reflecting most of the heat in the form of infrared radiation back inside the home during winter and outside during summer, while letting most visible light pass through.

Beverley Hills fixed windows feature Argon gas filling between panes.

Argon gas filling

The air between the glass panes inside a thermal glass unit is replaced with argon. This inert, odourless gas is heavier than air, reducing convection between the panes and the associated heat loss through the insulated thermal glass unit. It also offsets water vapour to prevent condensation between the panes.

Beverley Hills fixed windows feature Ener-Edge® warm-edge spacer.

Ener-Edge® warm-edge spacer

Our thermal glass units use a cellular silicone warm-edge spacer with low thermal conductivity, minimizing heat transfer between the interior and the exterior. It also allows for the natural expansion and compression due to temperature changes without failing the seal between them.

Beverley Hills fixed windows feature Triple weatherstripping.

Triple weatherstripping

Window sashes use three distinct continuous seals at the interface with the stationary frame and mullions. This stops drafts and the associated heat leaks through the fixed window. The thermal glass unit is also sealed to the sash from both the inside and the outside.

Beverley Hills fixed windows feature a PVC-cladded interior wood extension.

PVC-cladded interior wood extension

Our fixed windows accomodate a very securely fit interior wood extension cladded with a thick layer of no-maintenance PVC. It allows for the easy installation of blinds or other window treatments, and results in greater window strength and durability.

Beverley Hills fixed windows feature a High-gloss finish.

High-gloss finish

We use the highest grade PVC powder and fabrication techniques which result in a high gloss PVC finish. As a result, our windows are easier to clean, more durable, and won’t fade or yellow over time.

Beverley Hills fixed windows feature optional Integrated brickmould.

Integrated brickmould (optional)

A brickmould that is part of the window frame creates a superior window assembly that continues the insulation outside, also adding to the fixed window strength. It doesn’t require capping – this means less chance of water and air leakage.

Beverley Hills fixed windows feature durable standard colours.

Durable standard colours

Our RevoCell® fixed windows come in several standard colours that are engineered during the profile extrusion. Lighter tones are made with cap stock, meaning a layer of tinted PVC covering all exterior-facing surfaces. The darker tones are architectural-grade laminates that are UV reflective and extremely colourfast. Our standard colours are extremely UV and weather-resistant, and won’t peel, flake, or scratch like paint finishes.

Energy Efficient Fixed Windows

The manufacturing process of all Energy Star® certified fixed windows installed by Beverley Hills Windows and Doors are audited by an independent accredited certification body and approved by Natural Resources Canada. Our windows and doors carry the Energy Star® label showing their rating.

All of our RevoCell® mPVC windows meet and exceed the latest Energy Star designation criteria in Canada.

A map showing the Energy Star Rating Zones.

Fixed Window Ratings

Here are the ratings on standard RevoCell® Fixed / Custom Shaped windows, to CAN/CSA-A440.00 and NAFS-11 standards:

Layers of glazing 2 (dual pane) 3 (triple pane)
Air resistance A3 A3
Water resistance B7 B7
Wind resistance C5 C5
Resistance to forced entry F-40 F-40
Performance grade 85 85
Performance class LC LC
Max size tested 34” x 81” 34” x 81”
U-value (imperial) 0.26 0.15
Energy Rating (ER) 43 51
NRCan reference # NR6681-35098326-ES5 NR6681-35098693-ES5
ENERGY STAR rated 2024 Most Efficient 2024 Most Efficient

Your choice of colour

Most homeowners get their replacement windows in stock white, which is a great all-around colour. But you don’t have to: we offer a comprehensive selection of durable factory finishes on RevoCell® windows, to suit any home style. And if these don’t work for you, custom paint is always an option.

RevoCell® Window Colours

Click Swatch to preview colour.

Black A Black RevoCell® Window Section.
Cashmere A Cashmere RevoCell® Window Section.
Clay A Clay RevoCell® Window Section.
Commercial Brown A Commercial Brown RevoCell® Window Section.
Ivory A Ivory RevoCell® Window Section.
Khaki A Khaki RevoCell® Window Section.
Tan A Tan RevoCell® Window Section.
White A White RevoCell® Window Section.
Custom A Custom colored RevoCell® Window Section.
A White RevoCell® Window Section.

Picture Windows Gallery

Explore some examples of where to use fixed windows.

A fixed window with grille inserts
Three custom fixed pvc windows with black finish on a luxurious home.
Many vinyl picture windows and a custom patio door solution on a modern home.
The front face of a house with casement, fixed and custom shaped windows installed.
A combination of fixed and casement windows installed on a two-storey house.
Modern living room with large replacement fixed window and two double hung windows.

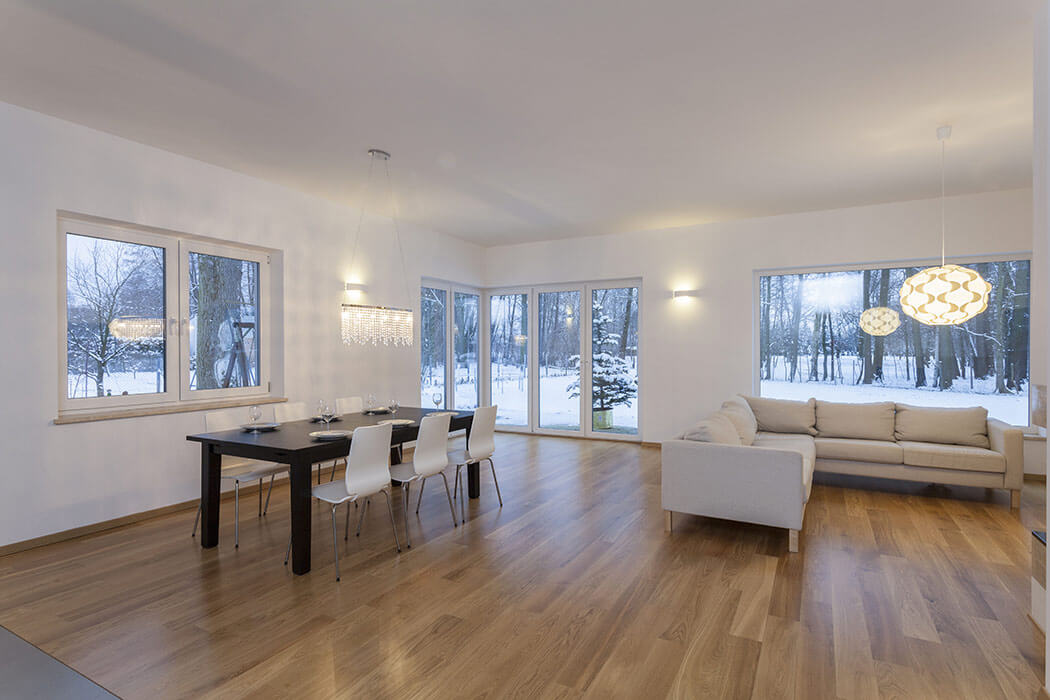

Large vinyl fixed windows in a rural home in a winter setting.
Kitchen with a dining room table and a large picture window looking onto the backyard.
Beige coloured fixed and casement windows installed throughout a house
Large casement windows with fixed window in the middle from the interior view of a bedroom.
Five pvc picture windows looking onto a beautiful view in a modern living room.
The front face of a house with casement and fixed windows installed.
A room with several fixed replacement windows, hardwood flooring, and modern furniture.
The front face of a house with casement and fixed windows installed.
Dining room with four large picture windows and two replacement double hung windows over a modern table.
A sleek dining room with many replacement picture windows around it.
